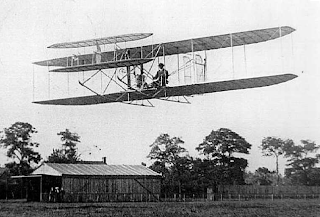

Wright Flyer III

The Wright Flyer III was the third powered aircraft built by the Wright Brothers. Orville Wright made the first flight with it on June 23, 1905. The Flyer III had an airframe of spruce construction with a wing camber of 1-in-20 as used in 1903, rather than the less effective 1-in-25 used in 1904. The new machine was equipped with the engine and other hardware from the Flyer II and was essentially the same design and same performance as Flyers I and II.

Orville suffered a serious nose-dive crash in the Flyer on July 14, 1905. When rebuilding the airplane, the Wrights made important design changes. They almost doubled the size of the elevator and rudder and moved them about twice the distance from the wings. They added two fixed half-moon shaped vertical vanes (called "blinkers") between the elevators (but later removed) and widened the skid-undercarriage which helped give the wings a very slight dihedral. They disconnected the rudder of the rebuilt Flyer III from the wing-warping control, and as in most future aircraft, placed it on a separate control handle. They also installed a larger fuel tank and mounted two radiators on front and back struts for extra coolant to the engine for the anticipated lengthy duration flights. When testing of Flyer III resumed in September, improvement was immediate. The pitch instability that had hampered Flyers I and II was brought under control. Crashes, some severe, stopped. Flights with the redesigned aircraft started lasting over 20 minutes. The Flyer III became practical and dependable, flying reliably for significant durations and bringing its pilot back to the starting point safely and landing without damage.

On October 5, 1905, Wilbur flew 24 miles in 39 minutes 23 seconds, longer than the total duration of all the flights of 1903 and 1904. Four days later, they wrote to the United States Secretary of War William Howard Taft, offering to sell the world's first practical fixed-wing aircraft.
